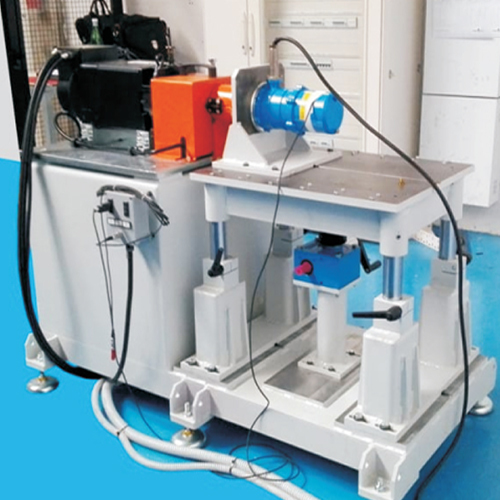

Automatic Hydmotor Torque Test Stand

Get a Price/Quote

MOQ : 1 Unit

Automatic Hydmotor Torque Test Stand Specification

Temperature
Ambient 0C - 50C

Measuring Range
0 - 2000 Nm

Power Supply
415V, 50 Hz, 3 Phase

Application
Testing torque performance and endurance of hydraulic motors

Test Range
0 - 2000 Nm

Automation Grade
Fully Automatic

Operating Voltage
415V AC

Max Height
1800 mm

Humidity
85% RH

Port Size
1.25 inch

Resolution
0.1 Nm

Display Type
Digital Touchscreen Display

Features
Automatic data logging, Overload Protection, Emergency Stop

Mounting Type
Floor Mounted

Accuracy
0.5% FS

Specimen Size
Customizable as per hydmotor size

Number of Specimens
1 per test cycle

Interface Type
Ethernet, USB

Frequency
50 Hz

Response Time
1 sec

Usage
Industrial Hydmotor Testing

Capacity
Max 2000 Nm torque

Machine Weight
Approx. 1200 kg

Test Speed
0 - 1500 RPM (adjustable)

Test Width
500 mm

Test Stroke
400 mm

Control Mode
Automatic PLC based control

Noise Level
<70 dB at 1 meter

Equipment Type
Automatic Hydmotor Torque Test Stand

Software Compatibility
Windows 10 & above

Safety Features
Interlocked safety enclosure, Over-temperature and overload alarms

Calibration
Inbuilt auto calibration routine

Cooling System
Integrated forced air cooling

Test Modes
Continuous, Intermittent, Programmable test cycles

Frame Construction
Heavy-duty steel frame for vibration-free operation

Rotary Coupling
High-precision rotary hydraulic union

Hydraulic Power
Up to 60 LPM, 200 bar

Data Output
Real-time USB/Network data export

Automatic Hydmotor Torque Test Stand Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Automatic Hydmotor Torque Test Stand

Discover the hot-selling Automatic Hydmotor Torque Test Stand, now available at a special rate with blue-ribbon features and an astonishing markdown for a limited time! Engineered from a superior heavy-duty steel frame for vibration-free operation, its interlocked safety enclosure and advanced alarms ensure ultimate safety. Operating at up to 60 LPM, 200 bar with a high-precision rotary coupling, enjoy superior accuracy (0.5% FS) and auto calibration. Designed for industrial applications, fully automatic PLC control, and compatible with Windows 10 & above, this unit delivers exceptional performance and reliability.

Usage Directions and Applications

The Automatic Hydmotor Torque Test Stand is specifically designed for industrial hydmotor testing, employed as a robust power unit. It ensures precise measurement of torque performance and endurance under programmable test cycles. Operators simply mount the customizable specimen size, set the digital touchscreen controls, and initiate testing via the automatic PLC-based system. Its seamless interface supports real-time data logging, making it ideal for quality control labs, manufacturing units, and R&D settings.

Supply Ability and Delivery Advantages

Benefit from reliable supply ability with prompt delivery time for your Automatic Hydmotor Torque Test Stand order. We guarantee the lowest price in the market, offering clients an impressive deal at the current rate. The asking price is unbeatable for bulk or single units, ensuring cost-effective procurement. Ships promptly from India's major FOB ports, enabling quick dispatch and arrival per schedule. Take advantage of this exceptional value-contact us now for immediate supply and special offers!

FAQ's of Automatic Hydmotor Torque Test Stand:

Q: How does the Automatic Hydmotor Torque Test Stand enhance torque testing accuracy?

A: The test stand employs inbuilt auto calibration and advanced digital touchscreen display, ensuring highly precise torque measurements with a 0.5% FS accuracy and 0.1 Nm resolution for consistent test results.

Q: What is the recommended direction of use for this test stand?

A: Users should securely mount the hydraulic motor specimen, configure settings on the touchscreen interface, choose the relevant test mode, and initiate testing through the PLC-based control system for reliable and efficient operation.

Q: Where can the Automatic Hydmotor Torque Test Stand be optimally used?

A: Ideal for industrial settings, including quality assurance labs, R&D departments, and manufacturing facilities, where hydraulic motor endurance and performance require regular validation.

Q: What are the outstanding benefits of the integrated safety features?

A: The interlocked safety enclosure, over-temperature, overload alarms, and emergency stop provide comprehensive operator and equipment protection during all testing cycles.

Q: How is data exported and managed with this torque test stand?

A: Real-time data can be exported via USB or Ethernet network, ensuring seamless integration with quality control systems and supporting analysis across Windows 10 & above platforms.
